Seismic exploration involves sending sound waves into the ground, recording how they
reflect back and interpreting the results to provide an image of subsurface geology to
determine whether oil may exist.
Seismic exploration, authorized by Congress, was conducted on the coastal plain of the
Arctic Refuge during the winters of 1984 and 1985. Exploration during winter causes less
damage to tundra vegetation and soils than in summer, but damage does occur. Snow cover on
the north slope of Alaska is normally shallow, usually less than one foot deep. Strong winds
blow the snow into depressions, leaving higher areas with thinner snow cover, making them
more susceptible to impacts from vehicle tracks.
As a result of the 1984-85 seismic exploration, known as 2-D seismic, 1400 miles of trails -
made by drill, vibrator and recording vehicles - impacted the coastal plain tundra
(see map above). Additional trails were created by D-7 Caterpillar tractors that pulled
ski-mounted trailer-trains between work camps.
Refuge staff have monitored the recovery of the seismic trail damage on the Refuge. While
many areas recovered well during the first 10 years after exploration, some trails had still
not recovered by 1999, 15 years after the disturbance (see photographs below). Some of the
trails have
become troughs visible from the air. Others show changes in the amount and types of tundra
plants. In some areas, permafrost (permanently frozen soil) melted and the trails remain
wetter than they were previously. Some of these impacts are expected to persist for decades;
refuge staff will continue to monitor the recovery.
A new technology used to create a
3-dimensional subsurface image, known as 3-D seismic, requires a much denser grid of trails
than 2-D seismic. This new type of exploration currently is occurring on the north slope of
Alaska, including an area within a half mile of the Refuge's western border. While the
1984-85 trails on the Refuge were usually four miles apart, the 3-D seismic trails currently
impacting these other areas are one half mile or less apart (see map above).
A 1998 Environmental Impact Statement from the Bureau of Land Management states: "because
3-D seismic involves more tight turns by heavy equipment than does 2-D, the potential for
vegetation damage is greater. For this reason, it can be assumed that the medium and high
disturbance levels to tundra would occur in greater proportions from 3-D seismic lines than
that presented for 2-D."
Seismic trail near Marsh Creek (red dot on map above).
(a) During exploration in winter 1984.

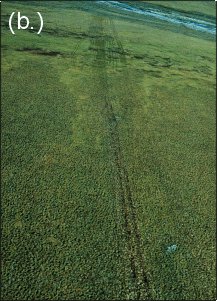

(b) Showing ruts of crushed sedge tussocks in July 1984.
(c) In June 1999, 15 years after disturbance.
